BALL valves

WATER

PROCESS / INDUSTRIAL

OIL / GAS

The Flow Control Group supply a complete range of Ball Valves for a wide range of applications in the water, wastewater, oil and gas and industrial process sectors.

The specification and selection of a valve and its operating protocols is essential to the optimum performance of any valve. The Flow Control team have the knowledge and expertise to identify the correct valve for the desired application.

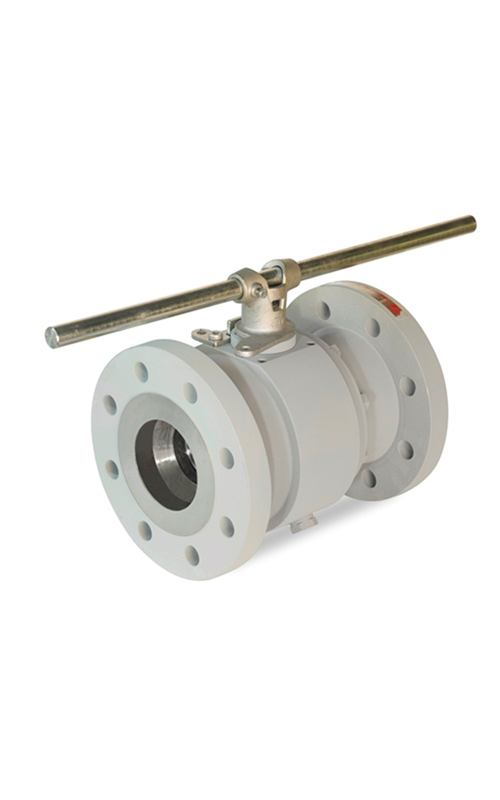

Ball valves are stocked in a range of materials and body styles from low cost to high pressure with special valves for flow control.

The scope of ball valves available is vast and The Flow Control Group can supply a complete range including one piece, two piece and three piece, 3 way, Reduced Bore, Full Bore, Fire Safe, Single Union, Double Union, Cryogenic.

Design Standard:  Design and testing according latest industrial standards which include BS 5351, Ansi, CE, PED, ATEX & SIL.

Firesafe certified to API 607 6th Edition, BS6755 Part 2, API 6FA and ISO 10497, Pressure tested API 598, EN 12266 and ISO 5208, ATEX 2014/34/EU (II2GD), TA-Luft and VDI2440, TR-CU32 (GOST)

Pressure Rates : • Pressure range: Up to 6000 psi dependant on temperature and operation

Sizes : ½” to 8”

Operation:

Lever, gearbox, electrically actuated, pneumatically actuated single acting spring return and double acting, hydraulically actuated single acting spring return and double acting. Rigid extension spindles, lagging extensions

Connections:

BSP, NPT, Socket Weld, Butt Weld, Tri Clamp, Compression End, Flange PN6,10,16,25,40

Flanged Ansi 150,300 600, 800,1500,2500, Table E, Wafer Pattern

Materials

Brass, Bronze, Cast Iron, Ductile Iron, Stainless Steel, Stainless Steel 316L, Duplex, Super Duplex, Cast Steel, PVC, ABS, PVDF, PP-H

Options: PTFE/PFA lined valves, hygienic valves, cryogenic options, lockable options, GAS approvals, WRAS approvals, CE & ATEX compliant, FM Approved,  wafer type and v type control valves. Special paint coatings to WIMES…plus many more options.
