Air valves

WATER

PROCESS / INDUSTRIAL

OIL / GAS

The Flow Control Group supply a complete range of Air Valves for a wide range of applications in the water, wastewater, oil and gas and industrial process sectors.

The specification and selection of a valve and its operating protocols is essential to the optimum performance of any valve. The Flow Control team have the knowledge and expertise to identify the correct valve for the desired application.

Air valves form part of our customized solutions for the pressure control, regulation and surge prevention of pressurized systems.

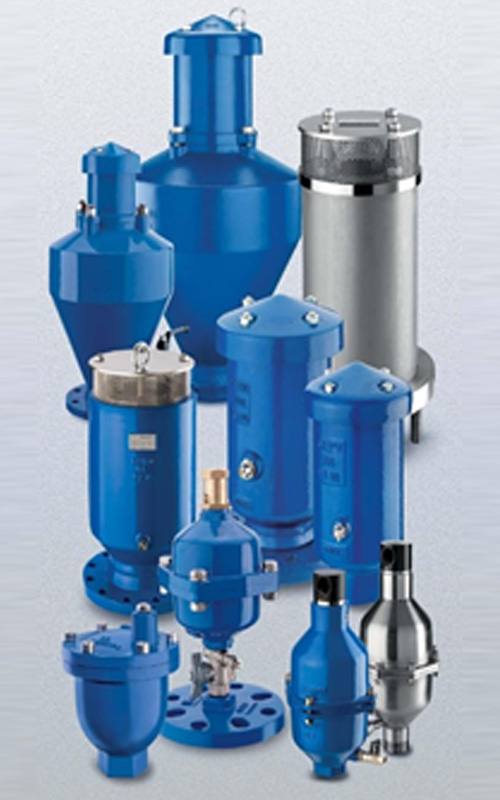

Air valves are used to both release air from a pipeline and to admit air into a pipeline. Our range includes single, double orifice and combination / triple function air valves.

The function of a small orifice air valve is to allow air to bleed from the pipeline under operating pressure.

Large orifice air valve allow air to be expelled from a pipeline system during filling and to admit air into the system whenever sub-atmospheric pressure occurs

The triple function air valve incorporates a small and large orifice air valve within a single unit. The large orifice functions in two ways, admitting air into the pipeline whenever the system pressure is below atmospheric and expelling air again as the system is refilled or charged. The small orifice allows air to bleed from the pipeline under operating pressure to expel any accumulations of air at high points or charges in pipeline profile.

Our triple function air release valve for sewage guarantees the proper operation of sewage lines allowing the entrance of a large quantity of air in case of pipe burst or draining, the release of air pockets during working conditions and the discharge or air during pipe filling

Design Standard:  Design and testing according to EN 1074, AWWA C-512, AS 4956, AS 4020, WRAS.

Pressure Rates : • Pressure range: 10-16-25-40 bar.

Connections Water

Flanges size from DN 50 to DN 400 mm.
Flanges standard EN 1092/2, ANSI 150, AS; different on request.
Threaded 1″ – 2″ BSP F; NPT on request

Connections Wastewater

Flanges size from DN 50 to DN 200 mm.
Flanges standard EN 1092/2, different on request.

Threaded connection 2″ BSP F, NPT on request

Connections Industrial

Flanges size from DN 50 to DN 400 mm.
Flanges standard EN 1092/2, ANSI 150, AS; different on request.
Threaded 1″ – 2″ BSP F; NPT on request.

Materials

Cast Iron, Ductile Iron, Stainless Steel, Duplex, super Duplex, Plastic

FCC Potable Water Air Valves

EXPAND DOWNLOADS
Icon

FCC_Underground_Water_Air_Valve_8.2017_

Icon

FCC_P2C_Water_Combination_Air_Valve_7.2017_

Icon

FCC_LSK_Water_Air_Valve_Snorkel Kit_RB.2017_

Icon

FCC_GOLIA_SST_3F_combination_air_valve_8.2017_

Icon

FCC_FSK_Water_Air_Valve_Snorkel Kit_FB_8.2017_

Icon

FCC_3FR_Water_Combination_Air_Valve_8.2018_

Icon

FCC_3FR_RFP_Water_Anti-Surge_Air_Valve_8.2017_

Icon

FCC_3F_Water_Combination_Air_Valve_8.2018_

Icon

FCC_3F_RFP_Water_Anti-Surge_Air_Valve_8.2017_

Icon

FCC_3F_HP_Combination_Air_Valve_PN64_8.2017_

Icon

FCC_3F_AS_Water_Anti-Slam_Air_Valve_8.2017_

Icon

FCC_3F_AS_HP_Anti-Slam_Air_Valve_PN64_8.2017_

Icon

FCC_1_AV_Water_Air_Release_Valve

    FCC Sewage Air Valves

    EXPAND DOWNLOADS
    Icon

    FCC_underground_wastewater_air_valve_2.2018_

    Icon

    FCC_SCS_AS_industry_anti-slam_air_valve_8.2017_

    Icon

    FCC_SCS_2_SST_industry_combination_air_valve_8.2017_

    Icon

    FCC_SCF_wastewater_combination_air_valve_8.2017_

    Icon

    FCC_SCF_SUB_wastewater_air_valve_with_conveyance_8.2017_

    Icon

    FCC_SCF_RFP_wastewater_anti-surge_air_valve_8.2017_

    Icon

    FCC_SCF_RFP_2_wastewater_anti-surge_air_valve_5.2018_

    Icon

    FCC_SCF_AS_wastewater_anti-slam_air_valve_8.2017_

    Icon

    FCC_SCF_2_wastewater_combination_air_valve_8.2017_1

    Icon

    FCC_SCF_2_wastewater_combination_air_valve_8.2017_

    Icon

    FCC - Model - 80mm R - Three function automatic air valve for sewage - 2016 - Ball Valve Flange

    Icon

    FCC - Model - 2inch SCA - Three function automatic Anti-Surge air valve for sewage - April 2016

    Icon

    FCC - Model - 2inch BSP or 50-80mm Flanged SCF - Three function automatic air valve for sewage - April 2015
