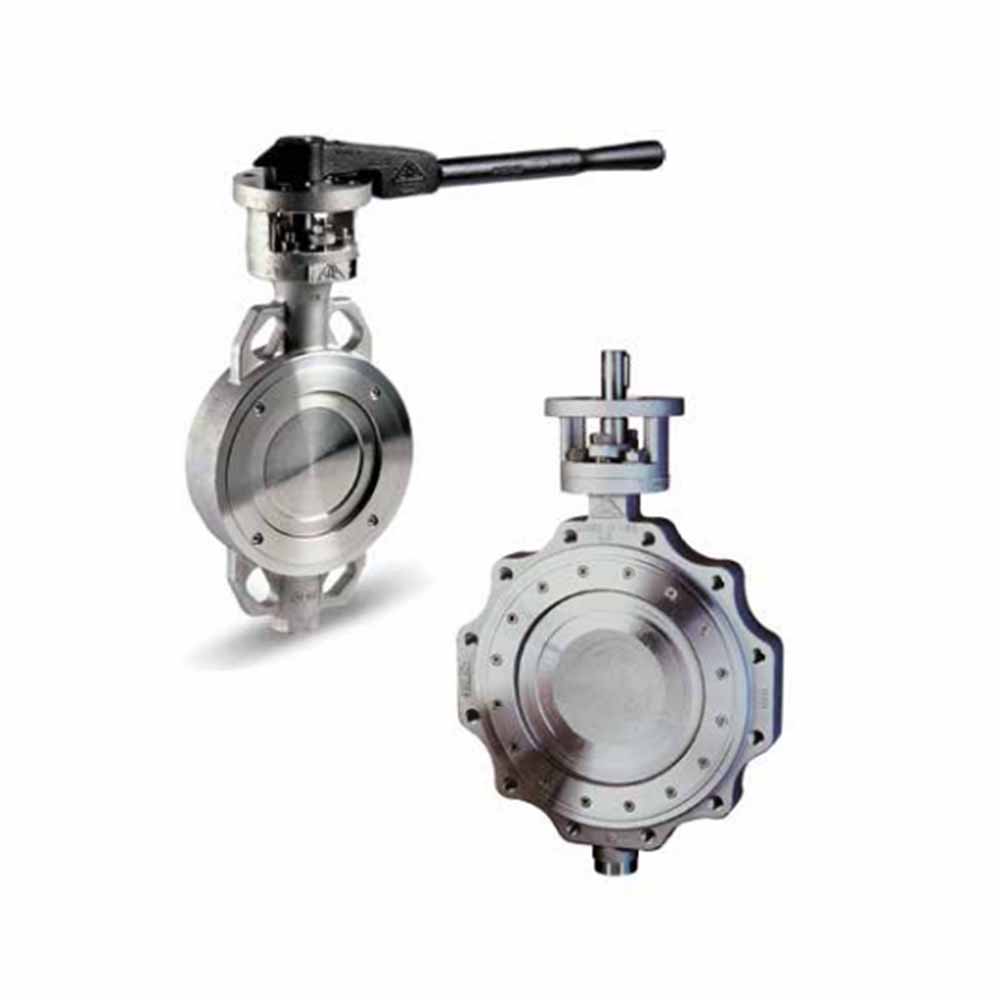

High Performance Butterfly Valves
The Flow Control Group supply a complete range of High-Performance Butterfly Valves for a wide range of applications in the water, wastewater, oil and gas and industrial process sectors.
The specification and selection of a valve and its operating protocols is essential to the optimum performance of any valve. The Flow Control team have the knowledge and expertise to identify the correct valve for the desired application.
The Flow Control Group are approved distributors of BAC High Performance Butterfly Valves in the UK and overseas.
In addition we are able to supply other valves dependant on size and application.
High performance Butterfly Valves are particularly suitable for the oil, gas and process industries.
We can supply Wafer Pattern, Lugged & Tapped or Double Flanged 2 way High Performance Butterfly Valves
Suitable for a variety of applications offering durability, reliability and cost effective alternative to ball valves.
For use on high temperature, high pressure or high duty cycle applications where a conventional concentric butterfly valve would not be suitable
Available with a Pneumatic or Electric Actuator and range of additional accessories such as switchbox, solenoid, air-filter regulator, 4-20mA Electro Pneumatic Positioner
Additional information
| Type | Wafer Pattern High Performance Butterfly Valves |
|---|---|
| Size & Connections | 50mm (2”) to 1200mm (48”), Wafer, Lugged & Tapped, Double Flange |
| Duty | Water, Steam, Gas, Oil, Alkalines, Acids, Solvents, Fuel |
| Materials | GG 25, GGG 40-50, GGG 40.3, GS-C25 |
| Seat Material | PTFE, RPTFE, INCONEL, AISI 316 |
| Pressure Rating | Class 150, Class 300, Class 600, Class 900, PN10, PN16, PN40 |
| Temperature | -196°c to 500°c according to pressure |
